FD500 series high performance vector frequency inverter
FD500 series high performance vector frequency inverter, simple and easy to use, can be applied to sewage treatment, HVAC, chemical, metallurgy, electric power and other industries of all kinds of load drive.
FD500 series inverter provided with excellent vector control performance, achieving the integration of torque control and speed control, can drive stably in various complex operating conditions. Built-in a variety of fan and pump application macros, such as PID, multi-pump control, constant pressure water supply, etc., can effectively reduce the commissioning difficulty for engineers. Independent air duct design and thickening circuit board coating, can adapt to harsh environment applications, ensure that the equipment runs reliably for a long time, and reduce maintenance cost.
FD500 has better compatibility of industrial control system. The power density of the product is improved, which is more convenient for cabinet design and reduces the system cost for customers. The Optimization of circuit design, with excellent electromagnetic compatibility characteristics, ensures that the equipment runs stably in complex electromagnetic environment.
bASIC INFO
AC 3PH 380~440V
0.1A~1000A
0.4kW~630kW
Asynchronous motor
V/Hz，SVC，VC
Yes
25~60 days, depends on order quantities
1PCS
Features
Our master control system employs a more powerful core, more efficient motor control algorithms making it more adept at handling various high-performance applications.

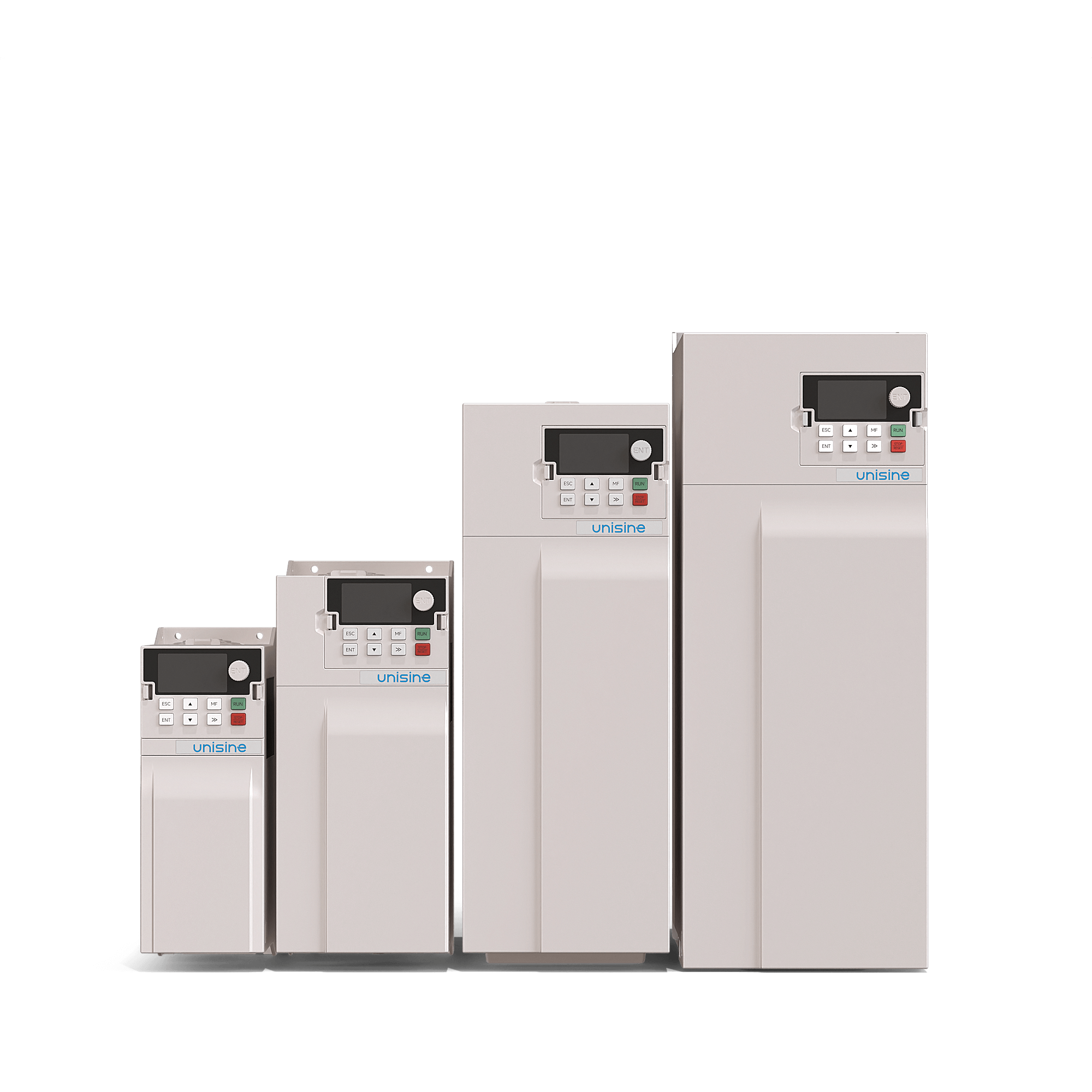

Compared to previous generations, the volume has been reduced by 42%, enabling seamless side-by-side installation for greater space efficiency.

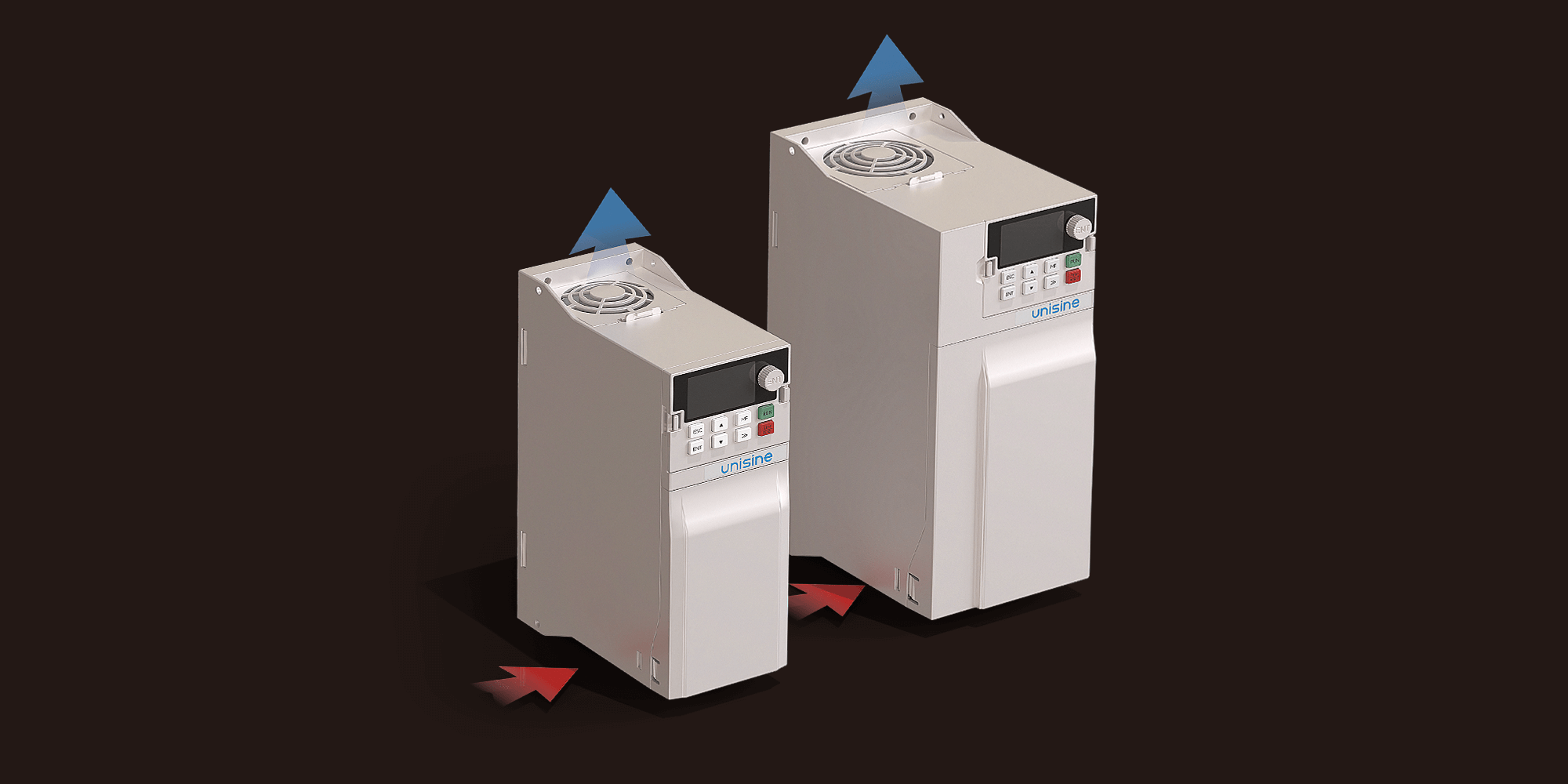

A more scientifically designed spatial heat dissipation system ensures effective temperature control even with significantly reduced device volume. Independent cooling ducts completely isolate the main controller from heat-generating components, delivering more stable product operation.

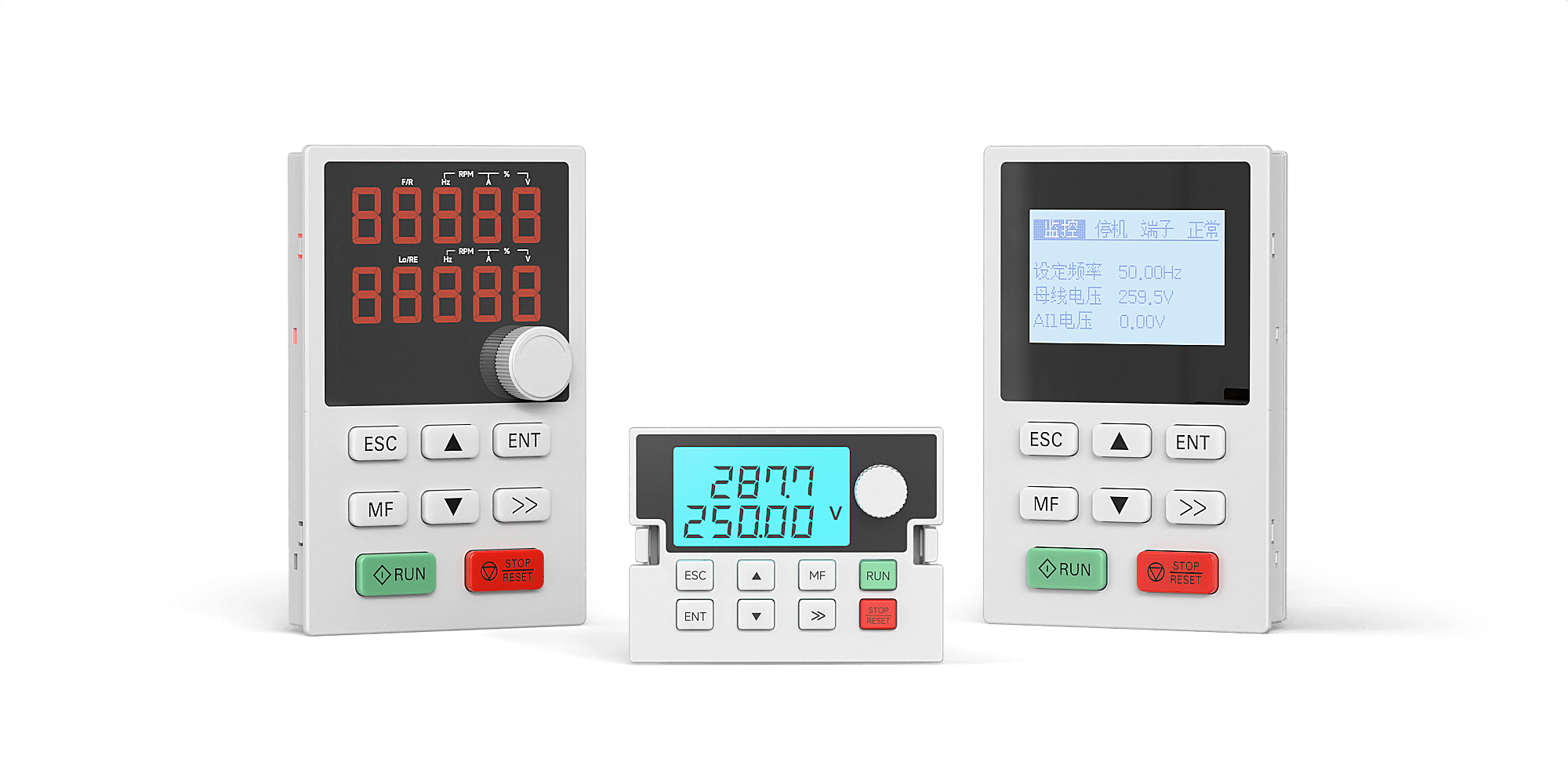

To enhance your user experience and facilitate system expansion, all FD500 models are equipped with LED/LCD keyboards. Please inform us of your requirements before placing your order.
Parameters
| ITEM | Value |
|---|---|
| Input voltage(V) | AC 3PH 380~440V |
| Allow transient voltage fluctuations | -15% ~ +10% |
| Input current (A) | Please refer to "3.6 Product ratings" |
| Input frequency (Hz) | 50Hz or 60Hz, allowing range 47Hz to 63Hz |
| Output volage(V) | 0~ Input voltage |
| Output current (A) | Please refer to "3.6 Product ratings |
| Output power (kW) | Please refer to "3.6 Product ratings |
| Output frequency (Hz) | 0~500Hz |
| Control mode | Space voltage vector control mode, no PG vector control mode |
| Motor type | Asynchronous motor |
| Speed regulation ratio | Asynchronous machine 1:200 (no PG vector control) |
| Torque response | <20ms (no PG vector control) |
| Overload capability | 150% 1 minute; 180% 3 seconds; 2000% 0.5 seconds |
| Frequency setting mode | Digital setting, analog setting, pulse frequency setting, multi-step running setting, simple PLC setting, PID setting, communication setting, etc. It can realize the combination of settings and the switch of setting channels |
| Automatic voltage adjustment function | When the grid voltage changes, it can automatically keep the output voltage constant |
| Fault protection function | Provide a variety of fault protection functions: over current, over voltage, under voltage, over temperature, lack of phase, overload etc. protection function |
| Speed tracking restart function | To achieve smooth start of the rotating motor without impact |
| Terminal analog input resolution | Not greater than 20mV |

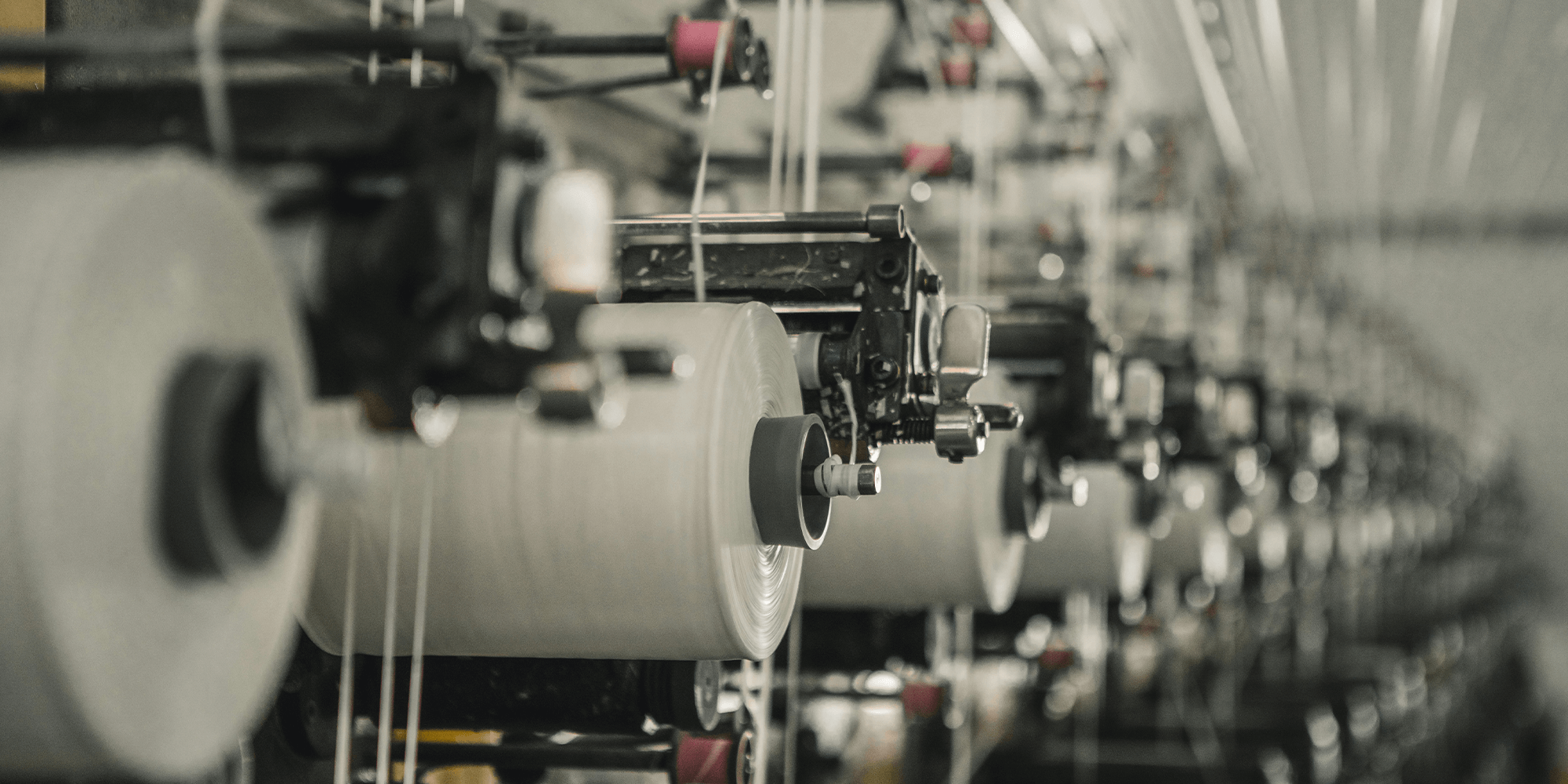

| Wobble frequeney control | Multiple triangular-wave frequency control,special for texltile |
| Terminal digital input resolution | Not greater than 2ms |
| Over-voltage &over-current stall control | Limit ourrent &voltage automaticallyduring the running process,prevent frequent over-current &over-voltage tripping |
| Analog input | 22kW and below: Standard with 1 channelAI:0~10V/0(4)~20mA, 2 inputs can be extended 22kW above: Standard with 2 channelsAI:0~10V/0(4)~20mA, |
| Analog output | 22kW and below: Standard with 1 channel AO: 0~10V/0(4)~20mA, 1 output can be extended 22kW above: Standard with 2 channels, AO:0~10V/0(4)~20mA |
| Digital output | 22kW and below: standard with 1 HDO terminal, 1DO collector open output can be extended 22kW above: Standard with 2 multi-function collector outputs, 1 of which can be used as high-speed pulseoutput (HDO). |
| Relay output | 22kW and below: Standard with 1 programmablerelay output, 1 relay output can be extended 22kW above: Standard with 2 programmable relay outputs Common contact capacity: 3A/AC250V, 1A/DC30V |
| Expansion interface | 1 expansion interface: can connect I/O card,incremental encoder, rotary transformer, sine-cosineencoder, PT100/1000 card, phase sequence card Note: Only one type of card can be connected |
| Installation method | Support wall mounted, floor mounted two ways |
| Level of protection | 160kW and below IP20 185kW and above IP00 |
| Pollution level | Level 2 |
| Cooling method | 0.75kW (included) or more: forced air cooling |

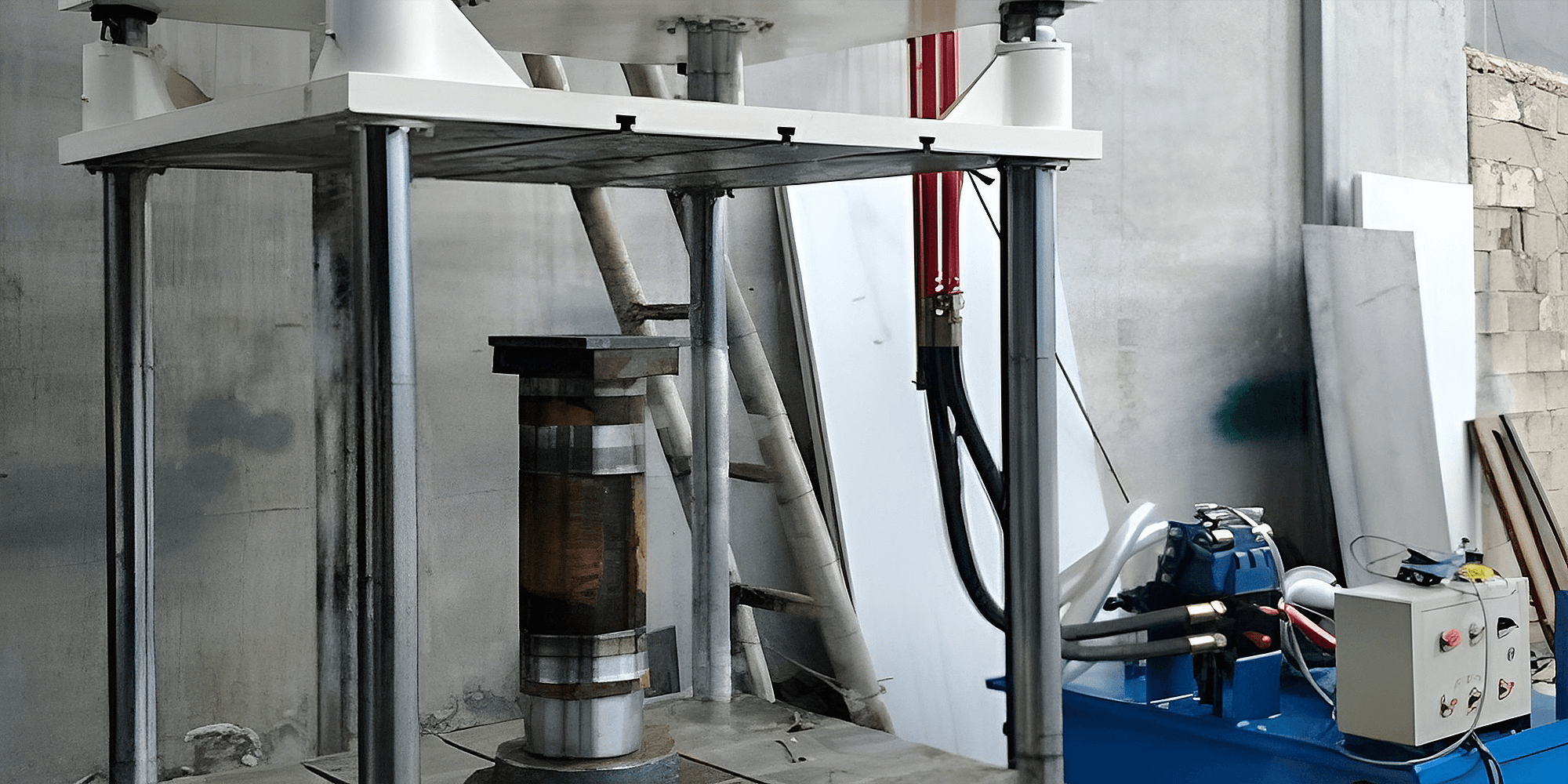

Application
