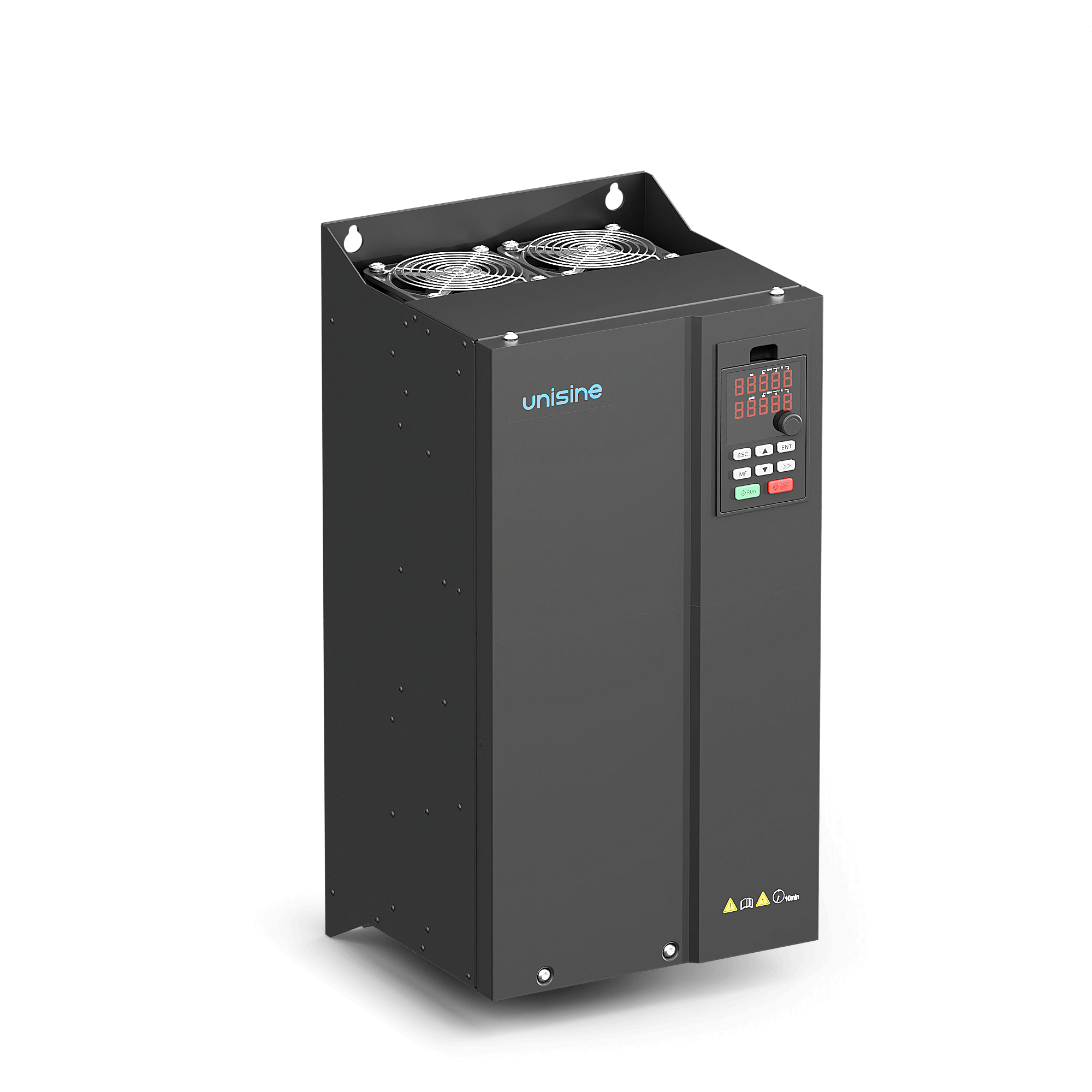

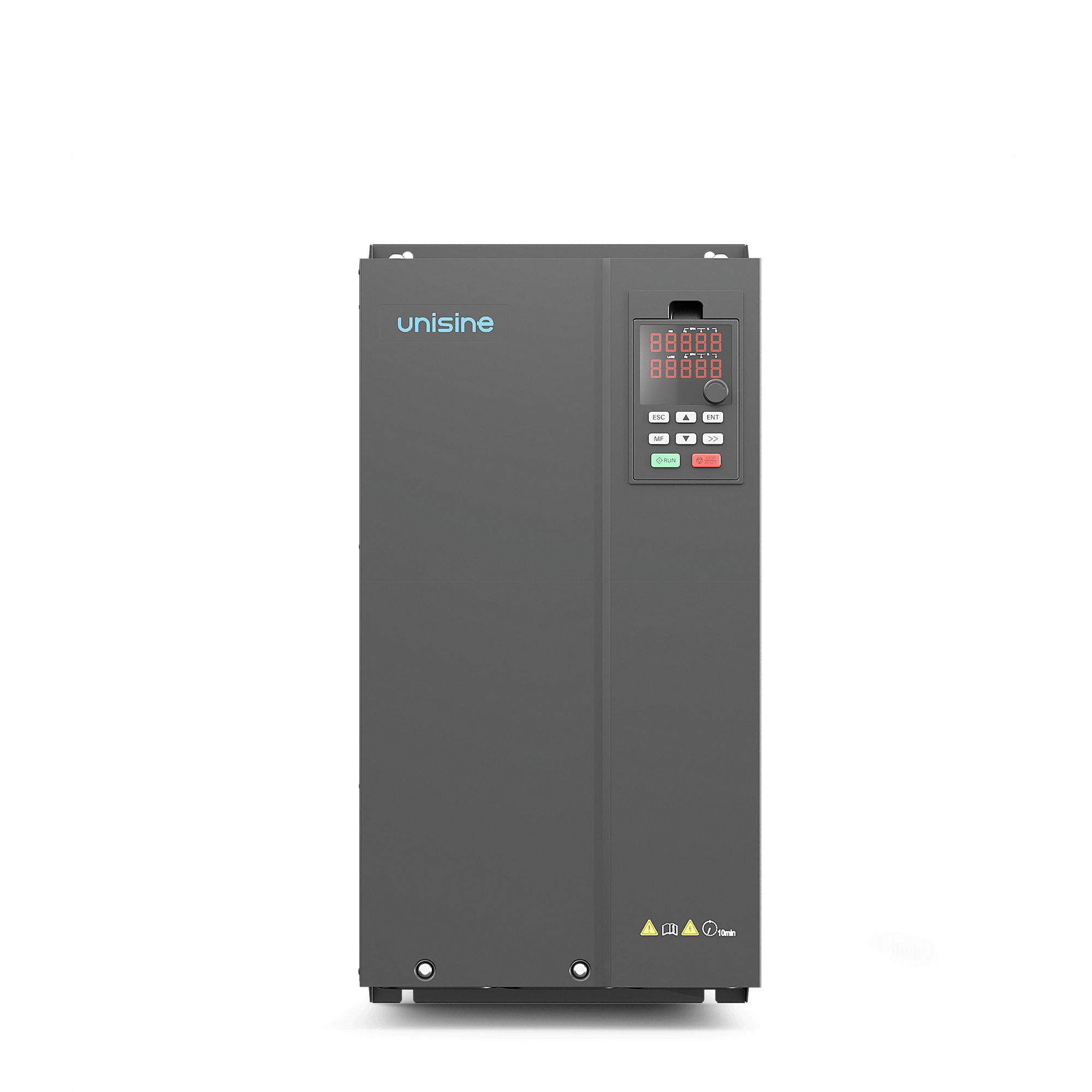

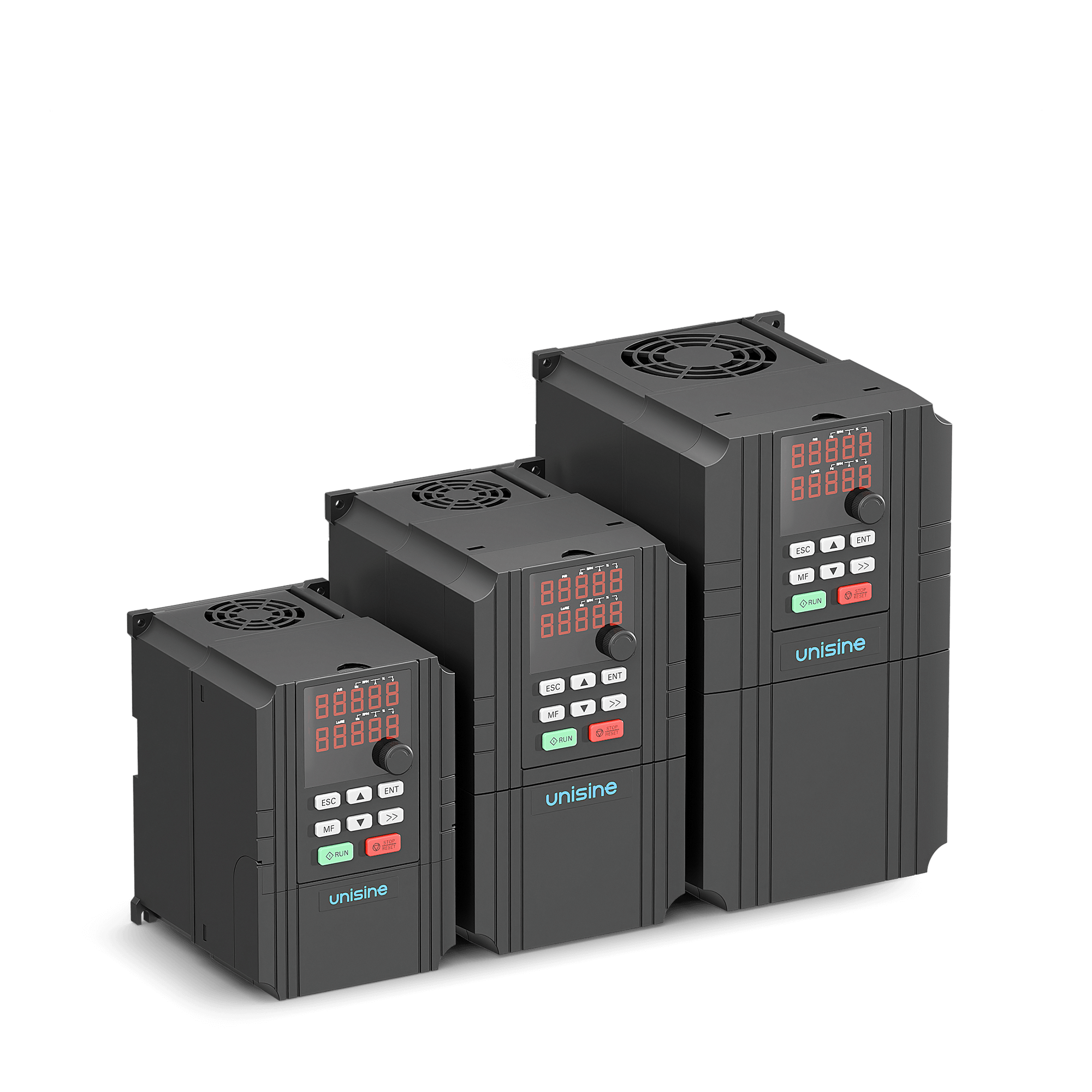

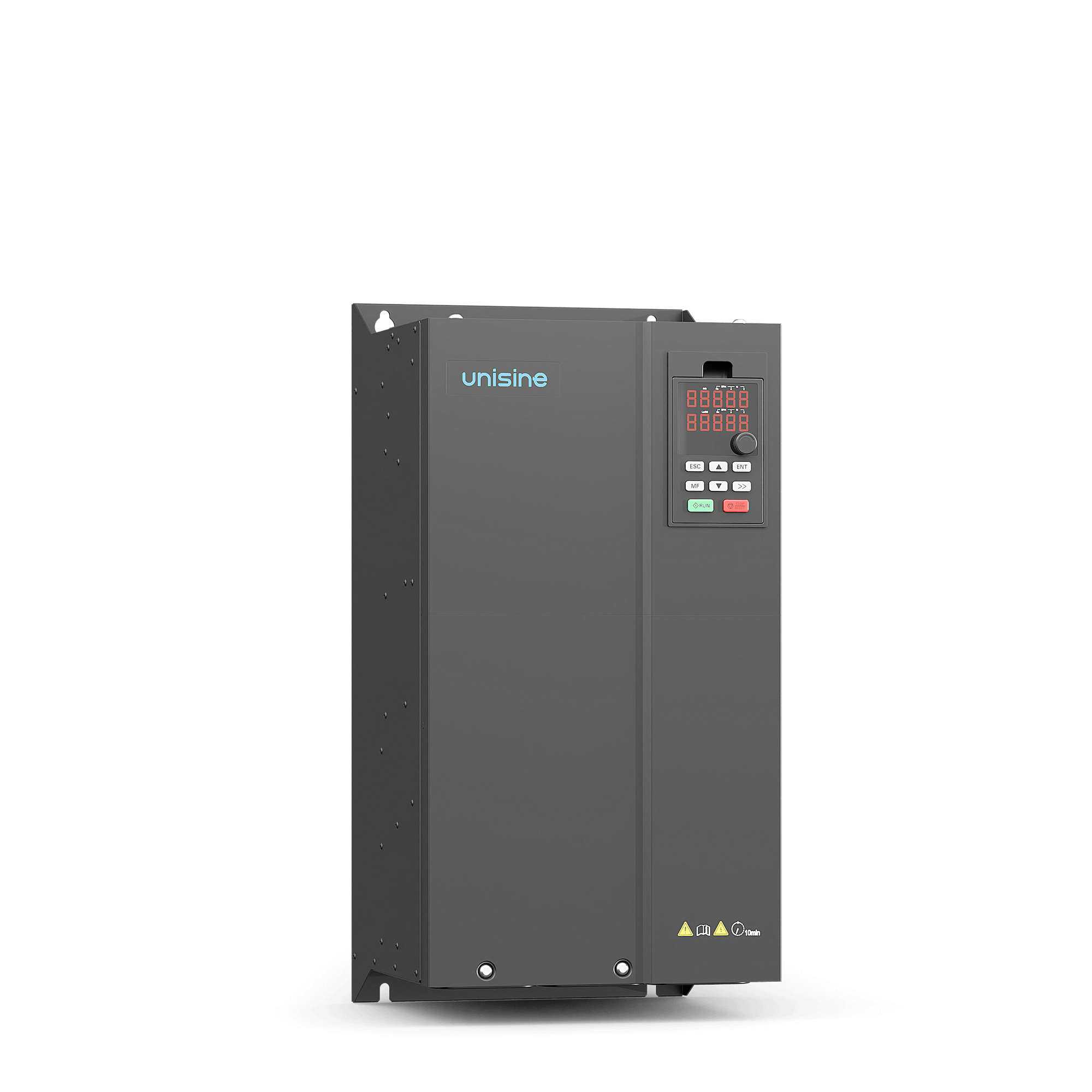

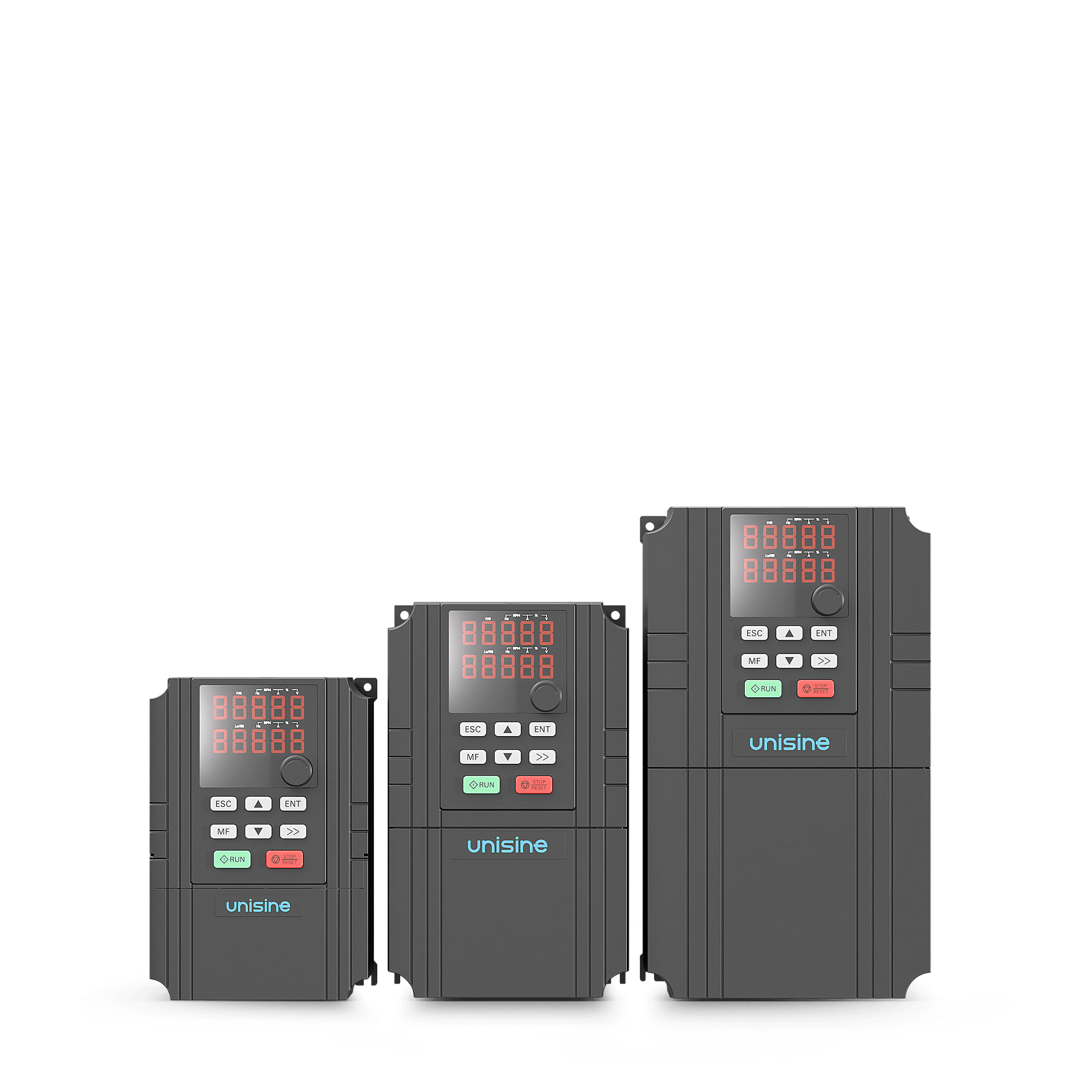

FD510 Step-up Dedicated AC Drive
The Unisine FD510 Step-up Series frequency inverter is a high-performance vector-controlled inverter meticulously crafted by Unisine using advanced power electronics technology and intelligent drive algorithms. Embracing Unisine’s unwavering commitment to superior quality, innovative technology, and green energy conservation, it is designed to provide powerful power, precise control, and reliable protection for industrial customers worldwide.
The FD510 Step-up Series inherits the stable DNA of classic frequency inverters while achieving a “step-up” in output capacity, protection level, and intelligent connectivity. Utilizing an advanced control core and high-quality components, it ensures outstanding performance in a wide range of complex applications, including pumps, fans, compressors, conveying systems, and specialized machinery. This helps customers improve production efficiency, reduce operating costs, and achieve intelligent upgrades.
bASIC INFO
AC1PH220V
AC3PH380V
1.5 - 18.5kW Cooling type: Forced air cooling
Industrial washing machines, food mixers, laboratory equipment, agricultural irrigation systems
1 PCS
2~10 days, depends on order quantities
Yes
Features
Utilizing sensorless vector control technology, the starting torque reaches up to 150% @1Hz, effectively handling fluctuating loads. A built-in auto-tuning function quickly matches motor parameters, improving system efficiency.
The high-protection design (optional IP55) is dustproof and waterproof, suitable for harsh operating environments. Hardware safety disable and fire mode are provided. In emergency situations, protection or full-speed operation can be activated directly via the hardware switch or fire mode, meeting special requirements such as firefighting. Comprehensive built-in fault protection features (such as overcurrent, overvoltage, short circuit, undervoltage, and overheating) are also included, along with pump-specific protection such as dry-run protection and blockage detection.
An automatic energy-saving mode automatically optimizes the output voltage based on load fluctuations, significantly reducing energy consumption during light loads. A sleep function automatically enters a low-power state when the device is unattended or demand is low.
Supports multiple communication protocols, including Modbus-RTU, BACnet, and Metasys N2, for easy integration with PLCs, DCSs, and building automation systems. Optional built-in PLC and perpetual calendar functions enable complex logic such as timed start/stop and multi-speed control.
Multiple dedicated operating modes are built in (such as constant pressure pumps, fans, compressors, HVAC, etc.), and multi-pump parallel control is supported (up to eight pumps can be linked).A frequency hopping function avoids mechanical resonance points for smoother operation.
Our master control system employs a more powerful core, more efficient motor control algorithms making it more adept at handling various high-performance applications.
Parameters
| Item | Value |
|---|---|
| Output voltage range | AC 3PH0~415V |
| Output frequency range | 0 to 400Hz,in 0.01Hz |
| Output overload capability | 150%/60s;180%/3s;200%/0.5s |
| Control mode | V/F control,open loop vector control(SVC) |
| Speed range | 1:100(V/F control)1:200(SVC) |
| Speed control accuracy | Plus or minus 0.5% |
| Speed fluctuations | Plus or minus 0.5% |
| Starting torque | 0.5Hz/150%(V/F control)0.25Hz/150%(SVC) |
| Starting frequency | 0.00 to 10.00Hz |
| Acceleration and deceleration time | 0.1 to 65000.0s |
| Carrier frequency | 0.5KHz to 16.0KHz |
| Frequency setting mode | UP/DOWN setting,digital setting,analog stting,multi-speed running setting,PID setting.MODBUS communication setting.Set the combination and set the channel switch |
| Boot mode | Starting frequency start,DC brake start again |
| Stopping mode | Slow down stop,free stop,slow down stop+DC brake |
| Energy consumption braking capability | Brake unit operating voltage:200~2000V(model to determine) |
| Automatic voltage adjustment | When the grid voltage changes,it can automatically keep the output voltage constant |
| Instantaneous frequency reduction | When the grid voltage is undervoltage,the instantaneous frequency drop to maintain the bus voltage |
| Switch input terminal | 8 inputs are standard,of which 1 can be used as high speed pulse input(HDI) |
| Analog input terminals | 2 analog inputs are standard,AIl,AI2:0~10V or 0/4~20mA input is optional. |
| Switch quantity output terminal | Standard with 2 multi-function collector output,of which 1 can be used as high-speed pulse output (HDO). |
| Analog output terminals | Standard 2-way output AO1,AO2(0~10V or 0/4~20mA optional) |
| Relay output | 2 relay outputs are standard |
| RS485 communication | Provide RS485 communication interface,RS485 communication with the outside world,support Modbus protocol (RTU mode) |
| Failure protection | Acceleration over current,deceleration over current,constant speed over current acceleration over voltage,deceleration over voltage,constant speed over voltage,bus undervoltage fault,motor overload,inverter overload,input power abnormal,output phase abnormal,rectifier module overheating fault,inverter module overheating fault, external fault,communication fault,current detection fault,EEPROM operation Make fault,PID feedback break fault,manufacturer set time arival,etc |
| Dual row LED display | Double row LED digital tube display inverter related information |
| Place of use | Indoor,less than 1 km above sea level,free from direct sunlight,free from dust,corrosive gas,flammable gas,oil mist,water vapor,dripping water or salt. |
| Humidity | 5 to 95% (no condensation) |
| Altitude | 0 ~ 2000m, derated use above 1000 m, rated output current is reduced by 1% for every 100 m rise |
| Vibration | Less than 0.5g |
Application
